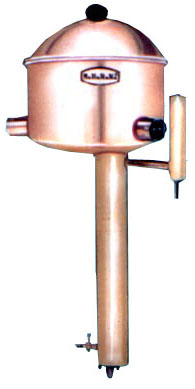

Water stills for pyrogen free distilled water are made of copper/brass/Stainless steel sheet grade 304 inside thickly tinned and the exterior stove enamel painted. A triple action steam baffle is provided over condenser tube passed centrally through an outer tube, carrying inlet water, which also helps the condensation process and economises electric energy. A constant level device is also provided and can be opened easily for cleaning. Fitted with automatic safety ejection type immersion heaters, water cock cord pin and wall bracket. Suitable for operation on 230/240 Volts AC mains.

Copper chamber (Lid, water constant level & Baffle are made of SS).

Cat No.	Capacity	Watts	Voltage
IMC-365 IMC-357 IMC-358 IMC-758	2.5 lit/hr.  4.5 lit/hr.  7.0 lit/hr.  10 lit/hr.	2 kw.  4 kw.  6 kw.  6 kw.	230 Volts. 230 Volts. 230/440 Volts. 230/440 Volts.

Copper Chamber but baffle & Condenser made of Stainless Steel.

Cat No.	Capacity	Watts	Voltage
IMC-365A IMC-357A IMC-358A IMC-758A	2.5 lit/hr.  4.5 lit/hr.  7.0 lit/hr.  10 lit/hr.	2 kw.  4 kw.  6 kw.  6 kw.	230 Volts. 230 Volts. 230/440 Volts. 230/440 Volts.

Stainless Steel Complete(Except rings screws and water cock are made of Brass)

Cat No.	Capacity	Watts	Voltage
IMC-369 IMC-360 IMC-367 IMC-359 IMC-759A IMC-759B	2.5 lit/hr.  4.5 lit/hr.  7.0 lit/hr.  10 lit/hr.  12 lit/hr.  14 lit/hr.	2 kw.  4 kw.  6 kw.  6 kw.  8 kw.  10 kw.	230 Volts. 230 Volts. 230/440 Volts. 230/440 Volts. 440 Volts. 440 Volts.
