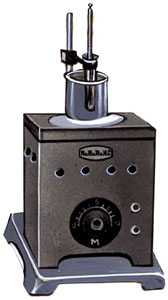

MaHaRaNa Drop Point Apparatus. (IP 31,132 and ASTM-D-556)
This is used for determining drop point of greases as per IP 31,132 & ASTM-D-566 . It is an indication of the critical temperature
of the solid or semi solid to the liquid state. The apparatus consists of brass sleeve and case with metal cup and a glass boiling tube with cork fitted to a bath (Beaker)
is provided . A stirrer is also provided in the bath.
IMC-414 | Drop Point Apparatus hand operated stirrer |
IMC-413 | Drop Point Apparatus with FHP Motorised stirrer and electrical heater with energy regulater control IP-31. |
IMC-413A | Same as above electric heated by concealedhot plate. |
IMC-554 | Drop Point Apparatus as per IP 132 and ASTM-D-566 |
IMC-554A | Same as above electric heated by concealed Hot Plate. |
Optional Accessories:
1. IMC -413/A Thermometer IP 40C Low range.
2. IMC -412/B Thermometer IP 41C High Range.
3. IMC -413/C Thermometer IP 62C Drop Point Special.
4. IMC -413/D Universal Heater for IMC-414.
5. IMC -413/A Spare Concealed Hot Plate.
|
